Pocket BVM (Bag Valve Mask)

Pocket BVM

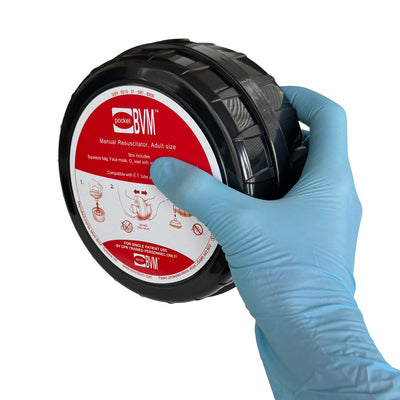

This is the world's first pocket BVM. It fits in the palm of your hand, is easy to deploy and is made of medical grade silicon.

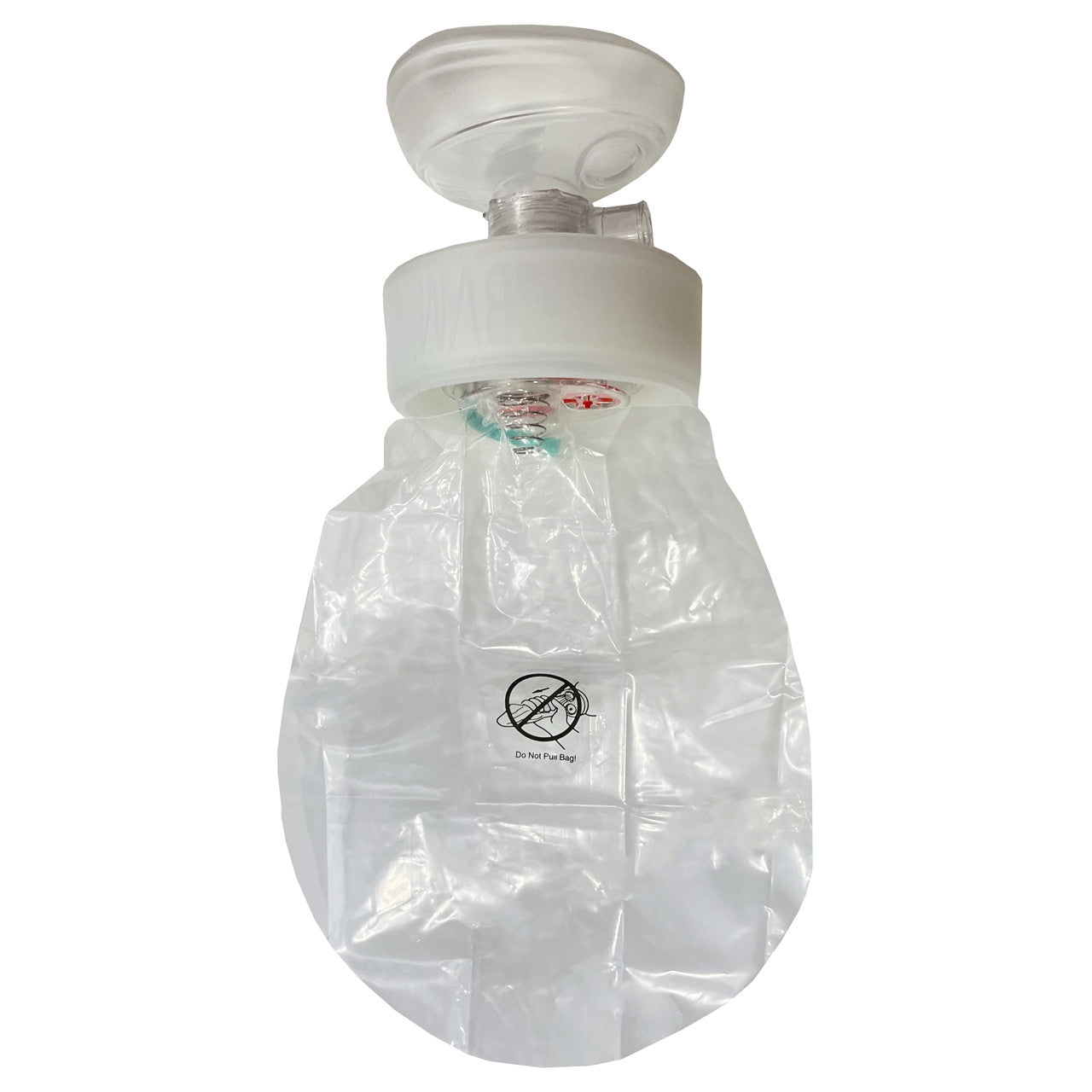

The Pocket BVM (Bag Valve Mask) is a hand-held disposable device for manual resuscitation and emergency respiratory support for adult patients. This device is designed for one-time patient use; however it can be re-folded for training purposes. It is ideal in either emergency or clinical settings, and replaces any standard BVM combining all components and operational capabilities into one compact unit.

Pocket BVM Features

• Saves 75% in space compared to standard BVM
• Proven in military and civilian emergencies
• Robust pack that withstands tough conditions
• Can easily be passed from one paramedic to another
• Top quality materials for top performance
• Disposable
• Transparent mask
• Positive End Expiratory Pressure (PEEP) compatible. (All of the connectors conform to industry safety standards.)
• Quick to deploy, and recovers shape easily
• Grip is textured to prevent slippage

Pocket BVM Additional Specifications

• Connections: Gas inlet tube 15mm length x 6mm O.D. Patient connector: outside - 22mm male, inside - 15mm female.
• Expiratory connector (for PEEP valve attachment): 30mm male
• Resuscitator Volume: 1600 ml.

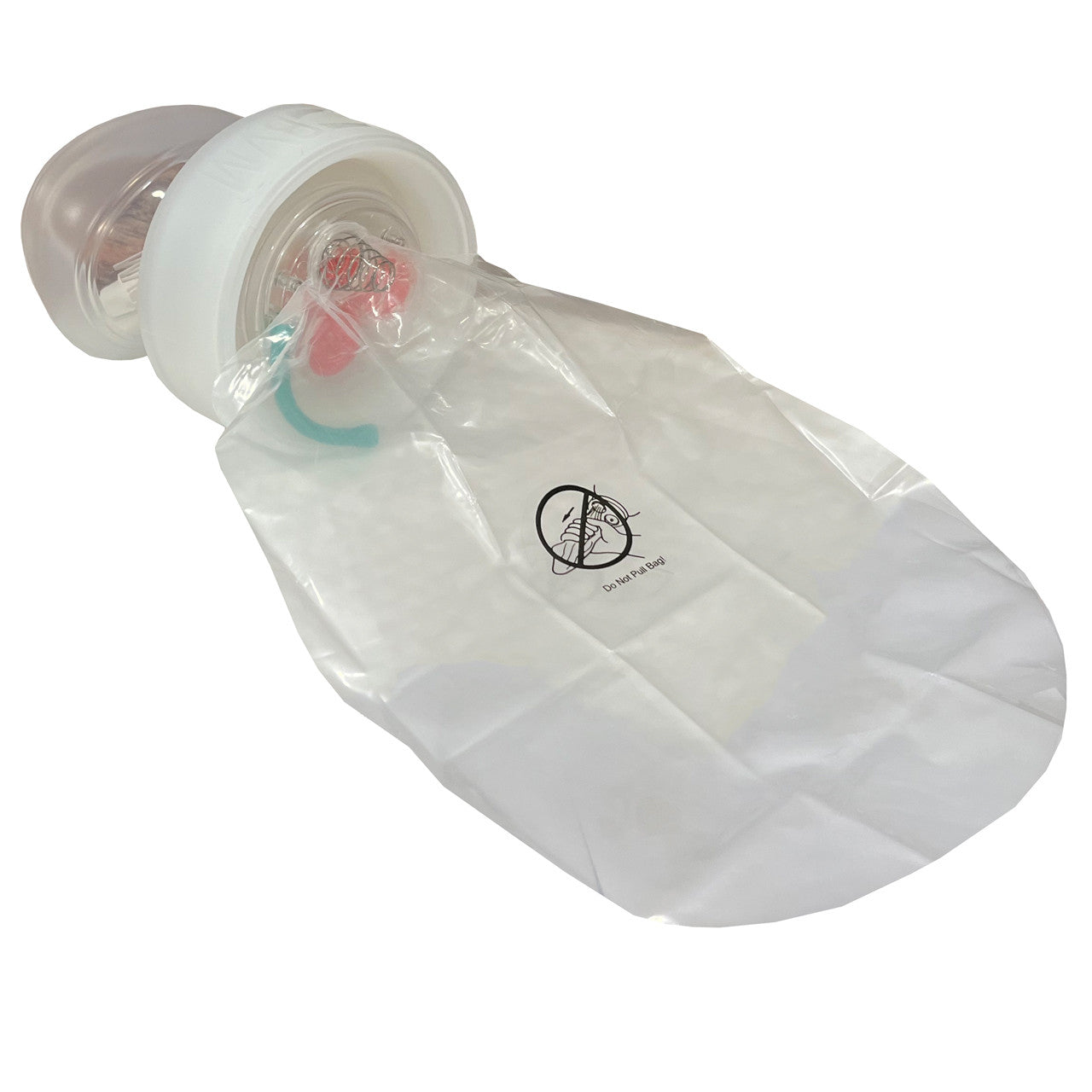

• Bag Reservoir Volume: 2600 ml.
• Size Unpacked: 8.5 in. long, 4.7 in. diameter (217mm length, 121mm diameter)
• Body Mass Suitable for Use: >88lbs. (40kg)
• Delivered Oxygen Concentration: 55% (at 2 L/min) to 100% (at 8 L/min)
